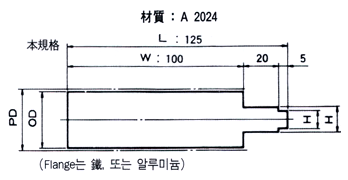

1. MXL-100 BAR 표준 Pulley 규격표
..※ 치수 40부터는 W : 150을 표준규격으로 하여 제작되어 있습니다.
치수 PD OD 치수 PD OD 치수 PD OD 치수 PD OD
10 6.47
5.96
+ 0.05
  0
35 22.64
22.13
+ 0.05
  0
60 38.81
38.30
+ 0.08
  0
85 54.98
54.47
+ 0.10
  0
11 7.11
6.61
+ 0.05
  0
36 23.29
22.78
+ 0.05
  0
61 39.46
38.95
+ 0.08
  0
86 55.63
55.12
+ 0.10
  0
12 7.76
7.25
+ 0.05
  0
37 23.93
23.42
+ 0.05
  0
62 40.10
39.59
+ 0.08
  0
87 56.27
55.76
+ 0.10
  0
13 8.41
7.90
+ 0.05
  0
38 24.58
24.07
+ 0.05
  0
63 40.75
40.24
+ 0.08
  0
88 56.92
56.41
+ 0.10
  0
14 9.06
8.55
+ 0.05
  0
39 25.23

24.72
+ 0.05
  0
64 41.40
40.89
+ 0.08
  0
89 57.57
57.06
+ 0.10
  0
15 9.70
9.19
+ 0.05
  0
40 25.87
25.36
+ 0.08
  0
65 42.04
41.53
+ 0.08
  0
90 58.21
57.70
+ 0.10
  0
16 10.35
9.84
+ 0.05
  0
41 26.52
26.01
+ 0.08
  0
66 42.69
42.18
+ 0.08
  0
91 58.86
58.35
+ 0.10
  0
17 11.00
10.49
+ 0.05
  0
42 27.17
26.66
+ 0.08
  0
67 43.34
42.83
+ 0.08
  0
92 59.51
59.00
+ 0.10
  0
18 11.64
11.13
+ 0.05
  0
43 27.81
27.30
+ 0.08
  0
68 43.98
43.47
+ 0.08
  0
93 60.15
59.64
+ 0.10
  0
19 12.29
11.78
+ 0.05
  0
44 28.46
27.95
+ 0.08
  0
69 44.63
44.12
+ 0.08
  0
94 60.80
60.29
+ 0.10
  0
20 12.94
12.43
+ 0.05
  0
45 29.11
28.60
+ 0.08
  0
70 45.28
44.77
+ 0.08
  0
95 61.45
60.94
+ 0.10
  0
21 13.58
13.07
+ 0.05
  0
46 29.75
29.25
+ 0.08
  0
71 45.92
45.42
+ 0.08
  0
96 62.09
61.59
+ 0.10
  0
22 14.23
13.72
+ 0.05
  0
47 30.40
29.89
+ 0.08
  0
72 46.57
46.06
+ 0.08
  0
97 62.74
62.23
+ 0.10
  0
23 14.88
14.37
+ 0.05
  0
48 31.05
30.54
+ 0.08
  0
73 47.22
46.71
+ 0.08
  0
98 63.39
62.88
+ 0.10
  0
24 15.52
15.02
+ 0.05
  0
49 31.69
31.19
+ 0.08
  0
74 47.86
47.36
+ 0.08
  0
99 64.03
63.53
+ 0.10
  0
25 16.17
15.66
+ 0.05
  0
50 32.34
31.83
+ 0.08
  0
75 48.51
48.00
+ 0.08
  0
100 64.68
64.17
+ 0.10
  0
26 16.82
16.31
+ 0.05
  0
51 32.99
32.48
+ 0.08
  0
76 49.16
48.65
+ 0.08
  0
101 65.33
64.82
+ 0.10
  0
27 17.46
19.96
+ 0.05
  0
52 33.63
33.13
+ 0.08
  0
77 49.80
49.30
+ 0.08
  0
102 65.97
65.47
+ 0.10
  0
28 18.11
17.60
+ 0.05
  0
53 34.28
33.77
+ 0.08
  0
78 50.45
49.94
+ 0.08
  0
103 66.62
66.11
+ 0.10
  0
29 18.76
18.25
+ 0.05
  0
54 34.93
34.42
+ 0.08
  0
79 51.10
50.59
+ 0.10
  0
104 67.27
66.76
+ 0.10
  0
30 19.40
18.90
+ 0.05
  0
55 35.57
35.07
+ 0.08
  0
80 51.74
51.24
+ 0.10
  0
105 67.91
67.41
+ 0.10
  0
31 20.05
19.54
+ 0.05
  0
56 36.22
35.71
+ 0.08
  0
81 52.39
51.88
+ 0.10
  0
106 68.96
68.05
+ 0.10
  0
32 20.70
20.19
+ 0.05
  0
57 36.87
39.36
+ 0.08
  0
82 53.04
52.53
+ 0.10
  0
107 69.21
68.70
+ 0.10
  0
33 21.34
20.84
+ 0.05
  0
58 37.51
37.01
+ 0.08
  0
83 53.68
53.18
+ 0.10
  0
108 69.86
69.35
+ 0.10
  0
34 21.99
21.48
+ 0.05
  0
59 38.16
37.65
+ 0.08
  0
84 54.33
53.82
+ 0.10
  0
109 70.50
69.99
+ 0.10
  0

2. XL037 표준 Pulley 규격표
6 Type 6F Type
치수 호칭기호 형상기호
규 격 단위 mm
PD OD W L F H BH8
10 10 X L037 6 6F 16.17 15.66 14.3 20 24 10.5 6
11 11 X L037   6F 17.79 17.28 14.3 20 24 12 6
12 12 X L037 6 6F 19.40 18.90 14.3 20 25 13 6
13 13 X L037   6F 21.02 20.51 14.3 20 28 14 7
14 14 X L037 6 6F 22.64 22.13 14.3 20 28 15 7
15 15 X L037   6F 24.26 23.75 14.3 20 30 16 7
16 16 X L037 6 6F 25.87 25.36 14.3 20 32 17 7
17 17 X L037   6F 27.49 26.98 14.3 20 33 18 7
18 18 X L037 6 6F 29.11 28.60 14.3 20 35 20 7
19 19 X L037 6 6F 30.72 30.22 14.3 20 35 22 8
20 20 X L037 6 6F 32.34 31.83 14.3 22 40 24 8
21 21 X L037 6 6F 33.96 33.45 14.3 22 40 24 8
22 22 X L037 6 6F 35.57 35.07 14.3 22 45 26 8
23 23 X L037   6F 37.19 36.68 14.3 22 45 26 8
24 24 X L037 6 6F 38.81 38.30 14.3 22 45 26 9
25 25 X L037   6F 40.43 39.92 14.3 22 48 26 9
26 26 X L037 6 6F 42.04 41.53 14.3 22 48 28 10
27 27 X L037   6F 43.66 43.15 14.3 22 52 28 10
28 28 X L037 6 6F 45.28 44.77 14.3 22 55 28 10
29 29 X L037   6F 46.89 46.39 14.3 22 55 28 10
30 30 X L037 6 6F 48.51 48.00 14.3 22 55 30 10
32 32 X L037 6 6F 51.74 51.24 14.3 25 58 30 10
34 34 X L037 6 6F 54.98 54.47 14.3 25 61 30 10
36 36 X L037 6 6F 58.21 57.70 14.3 25 67 30 10
38 38 X L037 6 6F 61.45 60.94 14.3 25   32 10
40 40 X L037 6 6F 64.68 64.41 14.3 25   32 10
42 42 X L037 6 6F 67.91 67.17 14.3 25   32 10
44 44 X L037 6   71.15 70.64 14.3 25   32 10
46 46 X L037 6   74.38 73.87 14.3 25   32 10
48 48 X L037 6   77.62 77.11 14.3 25   34 12
60 60 X L037 6   97.02 96.51 14.3 25   36 12
72 72 X L037 6   116.43 115.92 14.3 25   38 12
3. L050 표준 Pulley 규격표
6 Type 6F Type 33F Type 6W Type
치수 호칭기호 형상기호
규 격 단위 mm
PD OD W L F H BH8 X M
10 10 L050 6F 33F 30.32 29.56 19.1 29 35 21 7
12 12 L050 6F 33F 36.38 35.62 19.1 32 45 27 8
14 14 L050 6F 33F 42.45 41.68 19.1 32 48 30 10
16 16 L050 6F 33F 48.51 47.75 19.1 35 55 34 12
18 18 L050 6F 33F 54.57 53.81 19.1 35 61 36 12
19 19 L050 6F 33F 57.61 56.84 19.1 35 67 37 12
20 20 L050 6F 33F 60.64 59.88 19.1 35 67 38 12
21 21 L050 6F 33F 63.67 62.91 19.1 37 70 39 12
22 22 L050 6F 33F 66.70 65.94 19.1 38 76 40 12
24 24 L050 6F 33F 72.77 72.00 19.1 38 83 42 12
26 26 L050 6F 33F 78.83 78.07 19.1 38 88 42 12
28 28 L050 6F 33F 84.89 84.13 19.1 38 95 44 12
30 30 L050 6F 33F 90.96 90.20 19.1 38 99 44 12
32 32 L050 6   97.02 96.26 19.1 41   46 16
34 34 L050 6   103.08 102.32 19.1 41   46 16
36 36 L050 6   109.15 108.39 19.1 41   48 16
38 38 L050 6   115.21 114.45 19.1 41   50 16
40 40 L050 6   121.28 120.51 19.1 41   50 16
42 42 L050 6   127.34 126.58 19.1 41   50 16
44 44 L050 6W   133.40 132.64 19.1 41   52 16 6 109
46 46 L050 6W   139.47 138.71 19.1 41   52 16 6 115
48 48 L050 6W   145.53 144.77 19.1 41   52 16 6 121
60 60 L050 6W   181.91 181.15 19.1 41   56 16 6 156
72 72 L050 6W   218.30 217.53 19.1 41   60 20 6 190
4. L075 표준 Pulley 규격표
치수 호칭기호 형상기호
규 격 단위 mm
PD OD W L F H BH8 X M
10 10 L075 6F 33F 30.32 29.56 25.4 38 35 21 8
12 12 L075 6F 33F 36.38 35.62 25.4 38 45 27 8
14 14 L075 6F 33F 42.45 41.68 25.4 38 48 30 10
16 16 L075 6F 33F 48.51 47.75 25.4 41 55 34 12
18 18 L075 6F 33F 54.57 53.81 25.4 41 61 36 12
19 19 L075 6F 33F 57.61 56.84 25.4 41 67 37 12
20 20 L075 6F 33F 60.64 59.88 25.4 41 67 38 12
21 21 L075 6F 33F 63.67 62.91 25.4 43 70 39 12
22 22 L075 6F 33F 66.70 65.94 25.4 45 76 40 12
24 24 L075 6F 33F 72.77 72.00 25.4 45 83 42 12
26 26 L075 6F 33F 78.83 78.07 25.4 45 88 42 12
28 28 L075 6F 33F 84.89 84.13 25.4 45 95 44 12
30 30 L075 6F 33F 90.96 90.20 25.4 45 99 44 12
32 32 L075 6   97.02 96.26 25.4 48   46 16
34 34 L075 6   103.08 102.32 25.4 48   46 16
36 36 L075 6   109.15 108.39 25.4 48   48 16
38 38 L075 6   115.21 114.45 25.4 48   50 16
40 40 L075 6   121.28 120.51 25.4 48   50 16
42 42 L075 6   127.34 126.58 25.4 48   50 16
44 44 L075 6W   133.40 132.64 25.4 48   52 16 7 109
46 46 L075 6W   139.47 138.71 25.4 48   52 16 7 115
48 48 L075 6W   145.53 144.77 25.4 48   52 16 7 121
60 60 L075 6W   181.91 181.15 25.4 48   56 16 7 156
72 72 L075 6W   218.30 217.53 25.4 48   60 20 7 190
5. L100 표준 Pulley 규격표
치수 호칭기호 형상기호
규 격 단위 mm
PD OD W L F H BH8 X M
10 10 L100 6F 33F 30.32 29.56 31.8 45 35 21 8
12 12 L100 6F 33F 36.38 35.62 31.8 45 45 27 10
14 14 L100 6F 33F 42.45 41.68 31.8 45 48 30 10
16 16 L100 6F 33F 48.51 47.75 31.8 48 55 34 12
18 18 L100 6F 33F 54.57 53.81 31.8 48 61 36 12
19 19 L100 6F 33F 57.61 56.84 31.8 48 67 37 12
20 20 L100 6F 33F 60.64 59.88 31.8 48 67 38 12
21 21 L100 6F 33F 63.67 62.91 31.8 49 70 39 12
22 22 L100 6F 33F 66.70 65.94 31.8 51 76 40 12
24 24 L100 6 33F 72.77 72.00 31.8 51 83 42 12
26 26 L100 6 33F 78.83 78.07 31.8 54 88 42 12
28 28 L100 6 33F 84.89 84.13 31.8 57 95 44 12
30 30 L100 6 33F 90.96 90.20 31.8 57 99 44 12
32 32 L100 6   97.02 96.26 31.8 57   46 16
34 34 L100 6   103.08 102.32 31.8 57   46 16
36 36 L100 6   109.15 108.39 31.8 57   48 16
38 38 L100 6   115.21 114.45 31.8 57   50 16
40 40 L100 6   121.28 120.51 31.8 57   50 16
42 42 L100 6   127.34 126.58 31.8 57   50 16
44 44 L100 6W   133.40 132.64 31.8 57   52 16 8 109
46 46 L100 6W   139.47 138.71 31.8 57   52 16 8 115
48 48 L100 6W   145.53 144.77 31.8 57   52 16 8 121
60 60 L100 6W   181.91 181.15 31.8 57   56 16 8 156
72 72 L100 6W   218.30 217.53 31.8 57   60 20 8 190
6. H100 표준 Pulley 규격표
치수 호칭기호 형상기호
규 격 단위 mm
PD OD W L F H BH8 X M
14 14 H100 6F 33F 56.60 55.22 33.3 49 61 38 12
16 16 H100 6F 33F 64.68 63.31 33.3 52 70 46 16
18 18 H100 6F 33F 72.77 71.39 33.3 52 78 54 16
19 19 H100 6F 33F 76.81 75.44 33.3 54 83 54 16
20 20 H100 6F 33F 80.85 79.48 33.3 56 88 56 16
21 21 H100 6F 33F 84.89 83.52 33.3 59 95 56 16
22 22 H100 6F 33F 88.94 87.56 33.3 59 95 56 16
24 24 H100 6 33F 97.02 95.65 33.3 59 103 58 20
26 26 H100 6 33F 105.11 103.73 33.3 62 111 60 20
28 28 H100 6 33F 113.19 111.82 33.3 62 119 60 20
30 30 H100 6 33F 121.28 119.90 33.3 62 127 62 20
32 32 H100 6 33F 129.36 127.99 33.3 62 135 62 20
34 34 H100 6W   137.45 136.07 33.3 62   64 20 9.5 108
36 36 H100 6W   145.53 144.16 33.3 62   64 20 9.5 116
38 38 H100 6W   153.62 152.24 33.3 62   66 20 9.5 123
40 40 H100 6W   161.70 160.33 33.3 62   68 20 9.5 131
42 42 H100 6W   169.79 168.41 33.3 62   68 20 9.5 138
44 44 H100 6W   177.87 176.50 33.3 62   70 20 9.5 146
46 46 H100 6W   185.96 184.59 33.3 62   70 20 9.5 153
48 48 H100 6W   194.04 192.67 33.3 62   72 20 9.5 161
60 60 H100 6W   242.55 241.18 33.3 62   78 25 9.5 205
72 72 H100 6W   291.06 289.69 33.3 62   82 25 9.5 251
7. H150 표준 Pulley 규격표
치수 호칭기호 형상기호
규 격 단위 mm
PD OD W L F H BH8 X M
14 14 H150 6F 33F 56.60 55.22 46 62 61 38 14
16 16 H150 6F 33F 64.68 63.31 46 65 70 46 16
18 18 H150 6F 33F 72.77 71.39 46 65 78 54 16
19 19 H150 6F 33F 76.81 75.44 46 67 83 54 16
20 20 H150 6F 33F 80.85 79.48 46 68 88 56 16
21 21 H150 6F 33F 84.89 83.52 46 70 95 56 16
22 22 H150 6F 33F 88.94 87.56 46 71 95 56 16
24 24 H150 6F 33F 97.02 95.65 46 71 103 58 20
26 26 H150 6 33F 105.11 103.73 46 71 111 60 20
28 28 H150 6 33F 113.19 111.82 46 75 119 60 20
30 30 H150 6 33F 121.28 119.90 46 75 127 62 20
32 32 H150 6 33F 129.36 127.99 46 75 135 62 20
34 34 H150 0W   137.45 136.07 46     64 20 11 108
36 36 H150 0W   145.53 144.16 46     64 20 11 116
38 38 H150 0W   153.62 152.24 46     66 20 11 123
40 40 H150 0W   161.70 160.33 46     68 20 11 131
42 42 H150 0W   169.79 168.41 46     68 20 11 138
44 44 H150 0W   177.87 176.50 46     70 20 11 146
46 46 H150 0W   185.96 184.59 46     70 20 11 153
48 48 H150 0W   194.04 192.67 46     72 20 11 161
60 60 H150 0W   242.55 241.18 46     78 25 11 205
72 72 H150 0W   291.06 289.69 46     82 25 11 251
8. H200 표준 Pulley 규격표
치수 호칭기호 형상기호
규 격 단위 mm
PD OD W L F H BH8 X M
14 14 H200 6F 33F 56.60 55.22 59.5 75 61 38 16
16 16 H200 6F 33F 64.68 63.31 59.5 79 70 46 16
18 18 H200 6F 33F 72.77 71.39 59.5 79 78 54 16
19 19 H200 6F 33F 76.81 75.44 59.5 80 83 56 16
20 20 H200 6F 33F 80.85 79.48 59.5 82 88 60 20
21 21 H200 6F 33F 84.89 83.52 59.5 83 95 66 20
22 22 H200 6F 33F 88.94 87.56 59.5 85 95 70 20
24 24 H200 6F 33F 97.02 95.65 59.5 85 103 72 20
26 26 H200 6 33F 105.11 103.73 59.5 88 111 74 25
28 28 H200 6 33F 113.19 111.82 59.5 88 119 78 25
30 30 H200 6 33F 121.28 119.90 59.5 88 127 80 25
32 32 H200 6 33F 129.36 127.99 59.5 88 135 80 25
34 34 H200 0W   137.45 136.07 59.5     82 25 12 105
36 36 H200 0W   145.53 144.16 59.5     84 25 12 113
38 38 H200 0W   153.62 152.24 59.5     86 25 12 120
40 40 H200 0W   161.70 160.33 59.5     88 30 12 128
42 42 H200 0W   169.79 168.41 59.5     88 30 12 135
44 44 H200 0W   177.87 176.50 59.5     90 30 12 143
46 46 H200 0W   185.96 184.59 59.5     90 30 12 150
48 48 H200 0W   194.04 192.67 59.5     92 30 12 157
60 60 H200 0W   242.55 241.18 59.5     98 30 12 201
72 72 H200 0W   291.06 289.69 59.5     100 30 12 247
9. XH200 표준 Pulley 규격표
치수 호칭기호 형상기호
규 격 단위 mm
PD OD W L H B X M
max min
18 18 XH200 6 127.34 124.55 67 92 96 64 30
19 19 XH200 6 134.41 131.62 67 92 96 64 30
20 20 XH200 6 141.49 138.69 67 96 98 64 30
21 21 XH200 6 148.56 145.77 67 96 98 64 30
22 22 XH200 33 155.64 152.84 67     64 30
24 24 XH200 33 169.79 166.99 67     67 30
26 26 XH200 33 183.94 181.14 67     67 30
28 28 XH200 33 198.08 195.29 67     70 30
30 30 XH200 0W 212.23 209.44 67   105 70 30 16 167
32 32 XH200 0W 226.38 223.59 67   105 70 30 16 179
34 34 XH200 0W 240.53 237.74 67   110 73 30 16 192
36 36 XH200 0W 254.68 251.89 67   110 73 30 16 205
40 40 XH200 0W 282.98 280.18 67   115 77 30 16 230
42 42 XH200 0W 297.13 294.33 67   115 77 30 16 243
44 44 XH200 0W 311.28 308.48 67   115 77 30 16 257
48 48 XH200 0W 339.57 336.78 67   120 80 40 16 283
60 60 XH200 0A 424.47 421.67 67   130 87 40   364
72 72 XH200 0A 509.36 506.57 67   135 90 40   445
80 80 XH200 0A 565.95 563.16 67   140 93 40   500
84 84 XH200 0A 594.25 591.46 67   145 97 40   527
90 90 XH200 0A 636.70 633.91 67   150 100 50   568
96 96 XH200 0A 679.15 676.35 67   150 100 50   608
120 120XH200 0A 848.93 846 .14 67   150 100 50   770
